GA500 Series
GA50C2021AJA
AC Microdrives for Industrial Applications
Ürünlere Genel Bakış
The GA500 drive comes with valuable functions and smart features to provide benefits through the whole life cycle of a machine or installation. From drive selection, through design, installation, start-up or troubleshooting, the GA500 makes life easy.
- One drive controlling any induction, permanent magnet or synchronous reluctance motor
- Easy motor setup without the need for auto-tuning simplifies tuning with connected machinery

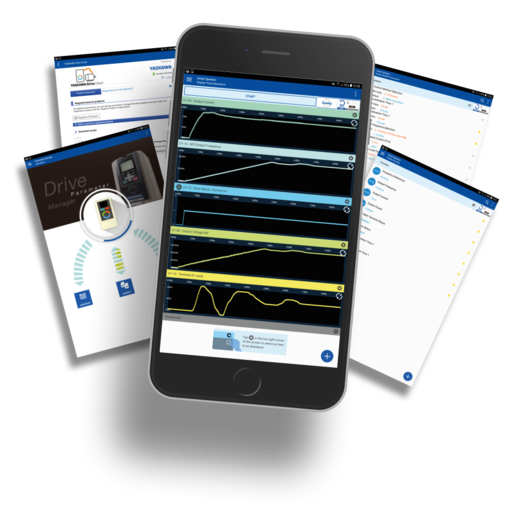

- Convenient commissioning by programming without main power from PC or Smart Phone
Teknik Detaylar
- Giriş Güç Kaynağı
- 200 V
- Anma Çıkış Akımı (HD)
- 17.6 A
- Anma Çıkış Akımı (ND)
- 21 A
- 50% ED Rated Output Current
- x Hayır
- Overload Tolerance (ND)
- 110% 60 sec
- Overload Tolerance (HD)
- 150% 60 sec
- Maks. Uygulanabilir Motor Çıkışı (HD)
- 4 kW
- Maks. Uygulanabilir Motor Çıkışı (ND)
- 5.5 kW
- Giriş Güç Fazları
- 3-faz
- EMC Filtre
- x Hayır
- Motor Tipi
- Induction motor, Permanent magnet motor, Synchronous reluctance motor
- Enkoder
- x Hayır
- Standartlara Uygunluk
- cUL, CE, RoHS, UL, UKCA
- Çevre Sıcaklığı (Maks) değer düşürme ile
- 35 °C
- Maks. Nem (yoğuşmasız)
- 50 %
- Yükseklik
- 128 mm
- Genişlik
- 140 mm
- Derinlik
- 78 mm
- Ağırlık
- 2.4 kg
- Cooling Method
- Air cooling
- Muhafaza
- Finless (IP20)
- Çevresel Teknik Özellikler
- Standard
- Analog Input
- 2
- Analog Output
- 1
- Digital Input
- 7
- Digital Output
- 3
- Safety Level
- SIL3
- Performance Level
- PL e
- Torque Control
- Standard
- Frenleme Transistörü
- Built-in
- Motor Thermal Protection
- Standard
- Max Output Frequency
- 590 Hz
