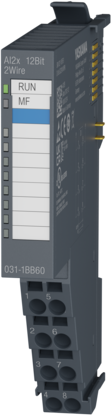

SM 031 - Analog Input - 031-1BB60

• Giriş Güç Kaynağı
• x Hayır

• Input Voltage
• x Hayır

• Current Consumption
• x Hayır

• Max. current drain at backplane bus
• x Hayır

• Max. current drain load supply
• x Hayır

• Current consumption from backplane bus
• 50 mA

• Current consumption from load voltage L+ (without load)
• x Hayır

• Power Loss
• 0.7 W

• Number of inputs (digital)
• x Hayır

• Rated load voltage (digital)
• x Hayır

• Current consumption from load voltage L+ (without load)
• x Hayır

• Signal logic input (digital)
• x Hayır

• Input characteristic curve (digital)
• x Hayır

• Initial data size (digital)
• x Hayır

• Number of outputs (digital)
• x Hayır

• Rated load voltage (digital output)
• x Hayır

• Current consumption from load voltage L+ (without load)
• x Hayır

• Signal logic output (digital)
• x Hayır

• Output data size (digital)
• x Hayır

• Number of inputs (analog)
• 2

• Rated load voltage (analog)
• 24 V

• Current consumption from load voltage L+ (without load)
• 15 mA

• Voltage inputs (analog)
• x Hayır

• Current inputs (analog)
• ✓ Evet

• Resolution in bit
• 12 bit

• Measurement principle
• successive approximation

• Basic conversion time
• 2 ms

• Initial data size
• x Hayır

• Number of outputs (analog)
• x Hayır

• Output voltage ranges
• x Hayır

• Output current ranges
• x Hayır

• Resolution in bit (analog)
• x Hayır

• Conversion time (analog)
• x Hayır

• Output data size (analog)
• x Hayır

• Number of counters
• x Hayır

• Counter width
• x Hayır

• Maximum input frequency
• x Hayır

• Maximum count frequency
• x Hayır

• Maximum count frequency
• x Hayır

• Maximum count frequency
• x Hayır

• Maximum count frequency
• x Hayır

• Number of channels
• x Hayır

• Input voltage (rated value)
• x Hayır

• Power stage
• x Hayır

• PWM frequency
• x Hayır

• Type of encoder
• x Hayır

• Encoder frequency
• x Hayır

• Encoder resolution (internal)
• x Hayır

• Control type
• x Hayır

• Terminal voltage max.
• x Hayır

• Terminal current max.
• x Hayır

• Total current per module, max.
• x Hayır

• Number of clamps
• x Hayır

• Binding of potential
• x Hayır

• Point-to-point protocol
• x Hayır

• Encoder Supply: Number of outputs (L+n)
• x Hayır

• Rated output current
• x Hayır

• Port mode
• x Hayır

• Load memory, integrated
• x Hayır

• Work memory, integrated
• x Hayır

• Work memory, maximal
• x Hayır

• Memory card slot
• x Hayır

• Racks, max.
• x Hayır

• Modules per rack, max.
• x Hayır

• Fieldbus
• x Hayır

• Connector
• x Hayır

• Topology
• x Hayır

• Transmission speed, max.
• x Hayır

• Address range inputs, max.
• x Hayır

• Address range outputs, max.
• x Hayır

• Material
• PPE / PPE GF10

• Montaj
• Profile rail 35 mm

• Dimensions Weight
• 12.9 mm

• Dimensions Height
• 109 mm

• Dimensions Depth
• 76.5 mm

• Net weight
• 58 g

• Gross weight
• 72 g

• Certifications
• UL certification, KC certification, UKCA certification, ChinaRoHS certification

• Safety protocol
• x Hayır

• Safety requirements
• x Hayır

• Circuit monitoring
• x Hayır

• Operating temperature Max
• 60 °C
