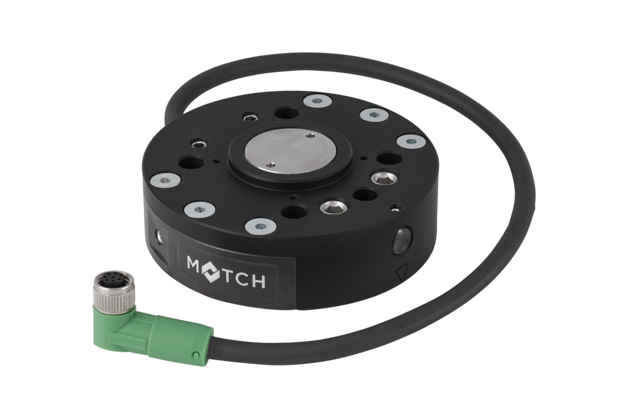

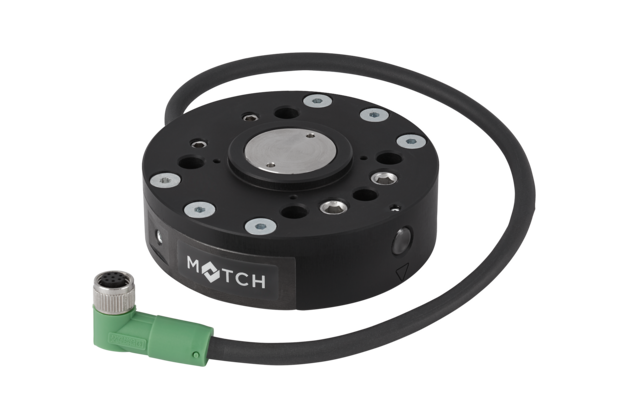

SCHMALZ MATCH RMQC Quick-Change Module

Ürünlere Genel Bakış

RMQC MATCH is a quick-change module for use within the MATCH end-of-arm ecosystem. Thanks to the standardized interface, it is possible to switch between different vacuum generators - automatically in a storage station or manually using an ergonomic one-hand click system. Process reliability is achieved through an integrated anti-rotation device as well as an optical and digital connect signal.
MATCH is a modular system consisting of different individual components. The components can be freely combined with each other. This results in maximum flexibility in terms of gripper selection and quick-change variants.

Available quick-change modules:

• RMQC 50 YAS DIO FD WB-M8-8 MATCH HC P version, digital input/output, PNP switching
• RMQC 50 YAS DIO FD WB-M8-8 MATCH HC P version, digital input/output, NPN switching

Go to Product Page

Mandatory Robot Controller Equipment: 8 Digital IOs.

• Full compatibility with the MATCH platform
• Handling of workpieces up to 25 kg
• Internal fluid channels for minimal interfering contours
• Various matching vacuum generators and grippers available
