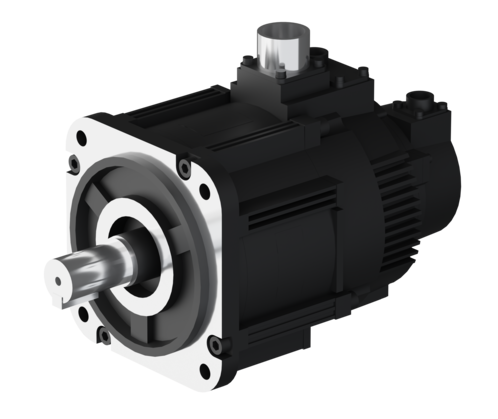

SGMXG

SGMXG-13AWA21A1

Quality. Precision. Dynamics.

Ürünlere Genel Bakış

The increased power demands of large automation components utilize the robust performance of SGMXG. These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range. Rated torques in the SGMXG family range up to 95.2 Nm. SGMXG delivers a rated speed of 1500 rpm, delivering a rapid and consistent throughput over a wide power range. 26-bit encoder resolution maintains industry-leading positional accuracy across the power spectrum.

Teknik Detaylar

Giriş Güç Kaynağı
200 V

Rated Output
1.3 kW

Shaft End
Straight without key

Encoder Resolution
26 bit

Encoder Type
Batteryless Absolute

Options
Without Options

Yükseklik
169 mm

Genişlik
130 mm

Derinlik
217 mm

Ağırlık
7.1 kg

Allowable Load Moment of Inertia
5 Times

Anma Torku
8.34 Nm

Instantaneous Maximum Torque
23.3 Nm

Rated Motor Speed
1000 1/min

Maximum Motor Speed
4000 1/min

Motor Moment of Inertia
19.9 x10⁻⁴ kg·m²

Flange Dimension (LC)
145 mm

Flange Diameter (LA)
130 mm

Shaft End Diameter (S)
24 mm

Shaft End Length (Q)
40 mm
