Our industry-leading, high-speed industrial robots include high-payload, extended-reach, ultra-maneuverable seven-axis and unique 15-axis dual-arm robots.
MPP Series
MPP3S
High Speed Delta Robots
Ürünlere Genel Bakış

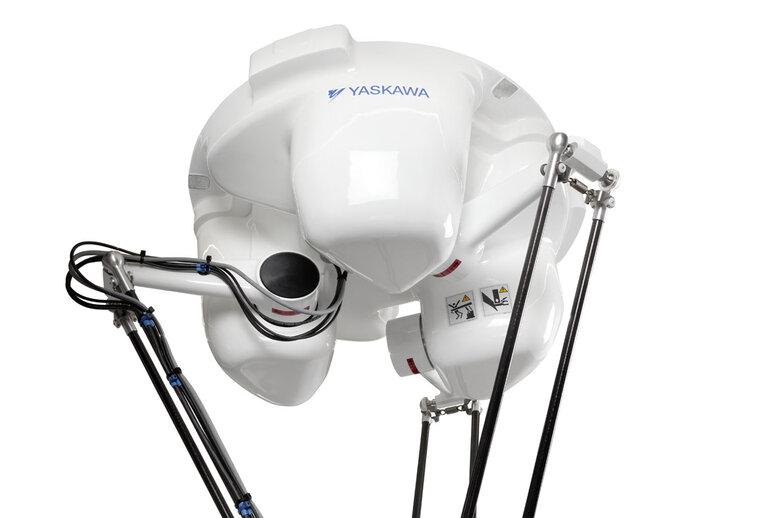

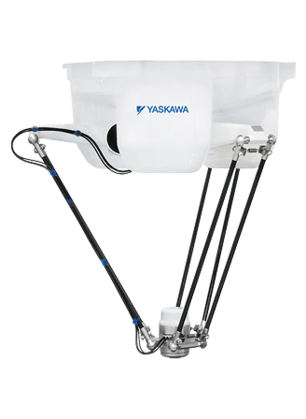

The MOTOMAN MPP3S is a Delta robot with a maximum payload of 3 kg and a recommended range of motion (Ø 580 x H 300 mm). Strongly depending on the payload and the motion pattern, the MPP3H can typically achieve impressive speeds of 2 to 4 cycles/second. The MPP3H is ISO Cleanroom Class 5 certified and IP67 protected (dust and liquid proof).

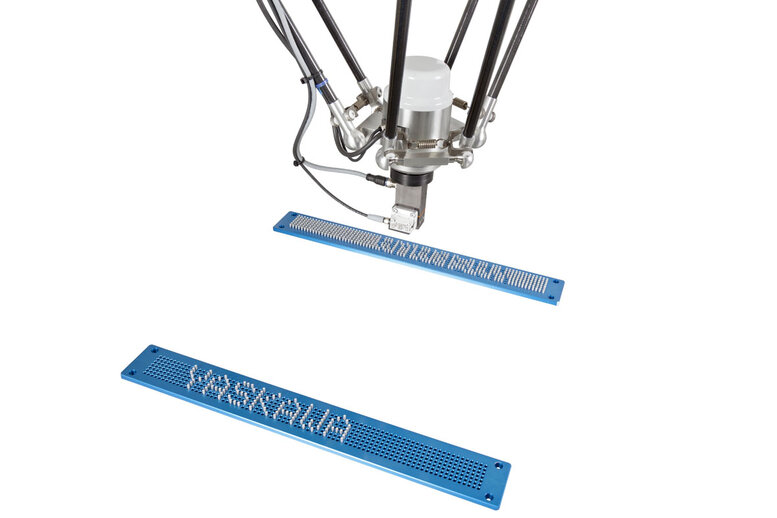

MPP3H robots are perfect for pick&place applications in Food, Life Sciences, Medical.
Teknik Detaylar
- Eksen Sayısı
- 4
- Taşıma Kapasitesİ
- 3 kg
- Maksimum Çalışma Aralığı
- 800 mm
- Tekrarlanabilirlik
- 0.1 mm
- Ağırlık
- 95 kg
- Güç Kaynağı
- 1.5 kVA
- Maximum Speed S Axis
- x Hayır
- Maximum Speed L Axis
- x Hayır
- Maximum Speed U Axis
- x Hayır
- Maximum Speed R Axis
- x Hayır
- Maximum Speed B Axis
- x Hayır
- Maximum Speed T Axis
- x Hayır
- Montaj Seçenekleri
- Ceiling
- Diğer Özellikler
- x Hayır
İndirme
| indirme merkezi sonuç bulunamadı | |||
|
Flyer Robot MPP3S
Flyer, datasheet, brochure robot MPP3S Data sheet | İngilizce |
Data sheet | İngilizce | |
|
Flyer Robot MPP3S
Flyer, Datenblatt, Prospekt Roboter MPP3S Data sheet | Almanca |
Data sheet | Almanca | |
| MPP3S_2D CAD/CAE | | CAD/CAE | ||
| MPP3S_3D-Iges-step CAD/CAE | | CAD/CAE | ||
| MPP3S_3D-jt CAD/CAE | | CAD/CAE |
